Frame	300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
Fork	Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit	Gravel
Wheels
expand_less
Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
*Rim	Size: 49, 52, 54, 56, 58, 61
	Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
	Size: 49, 52, 54, 56, 58, 61
	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager Aeolus XXX rim strip
Max tyre size	700x45c / 650x2.1" Bontrager tyres
Drivetrain
expand_less
Shifter	Shimano GRX RX600, 11-speed
Front derailleur	Shimano GRX RX810, braze-on
Rear derailleur	Shimano GRX RX810, long cage, 34T max cog
*Crank	Size: 49
	Shimano GRX RX600, 46/30, 165 mm length
	Size: 52
	Shimano GRX RX600, 46/30, 170 mm length
	Size: 54, 56
	Shimano GRX RX600, 46/30, 172.5 mm length
	Size: 58, 61
	Shimano GRX RX600, 46/30, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 HG700-11, 11-34, 11-speed
Chain	Shimano HG601
Max. chainring size	1x: 44T SRAM or 50T Shimano, 2x: 50/34
Components
expand_less
*Saddle	Size: 49, 52
	Bontrager P3 Verse Comp, steel rails, 155 mm width
	Size: 54, 56, 58, 61
	Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost	Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Handlebar	Size: 49
	Bontrager Elite Gravel, 38 cm width
	Size: 52
	Bontrager Elite Gravel, 40 cm width
	Size: 54, 56
	Bontrager Elite Gravel, 42 cm width
	Size: 58, 61
	Bontrager Elite Gravel, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 52, 54
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 56, 58
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 61
	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake rotor	Shimano SM-RT70, CenterLock, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear
Weight
expand_less
Weight	56 - 9.75 kg / 21.5 lb

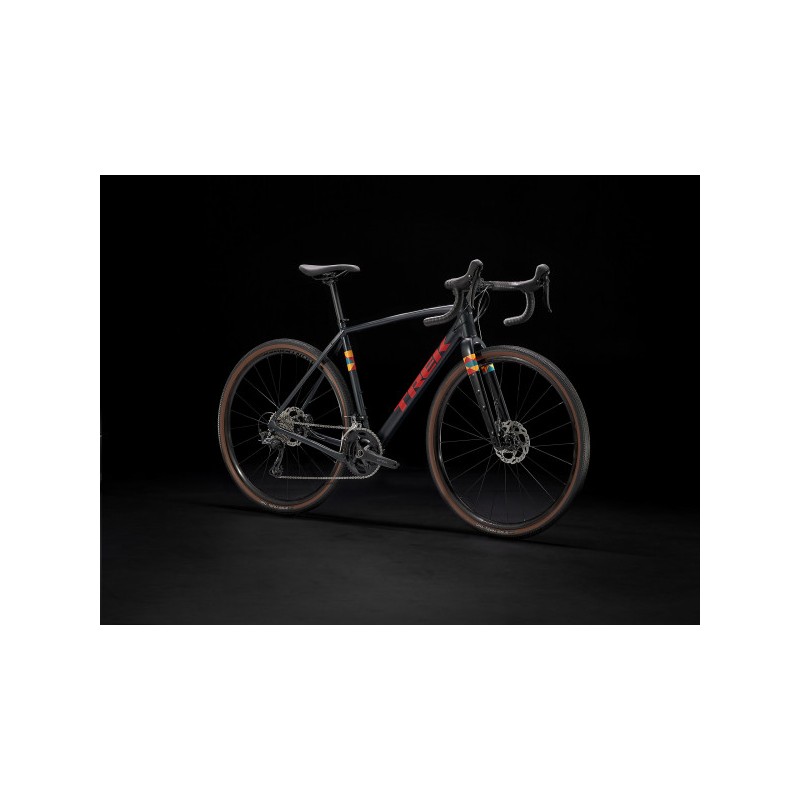

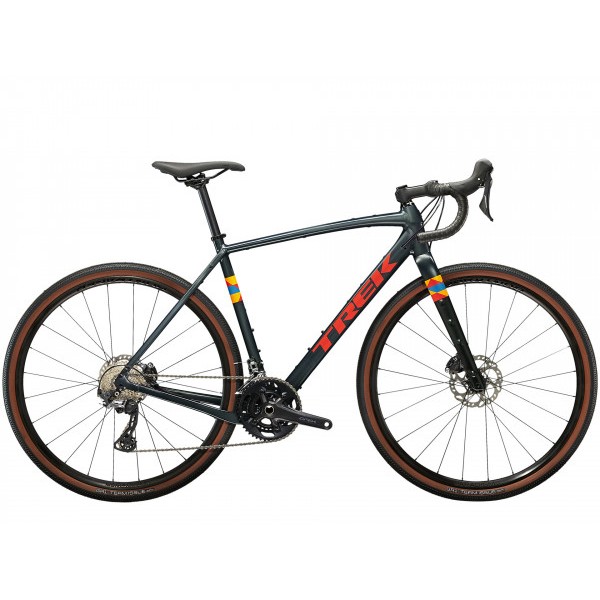

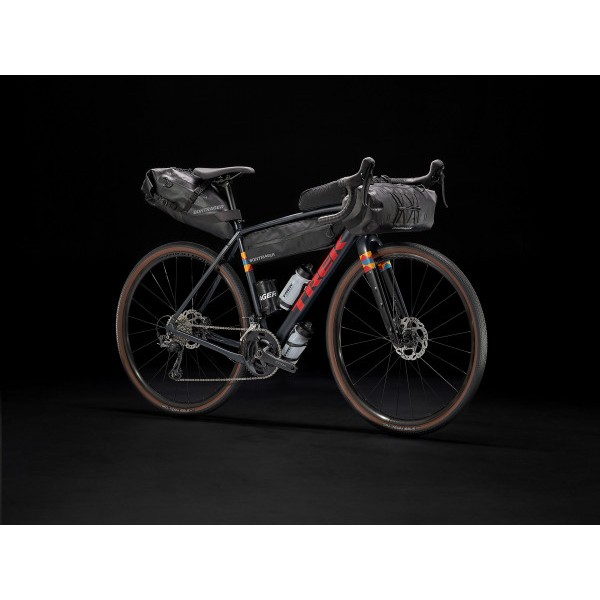

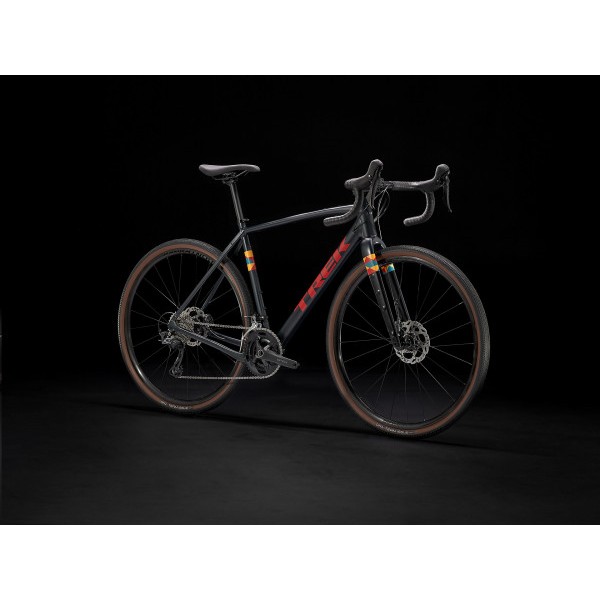

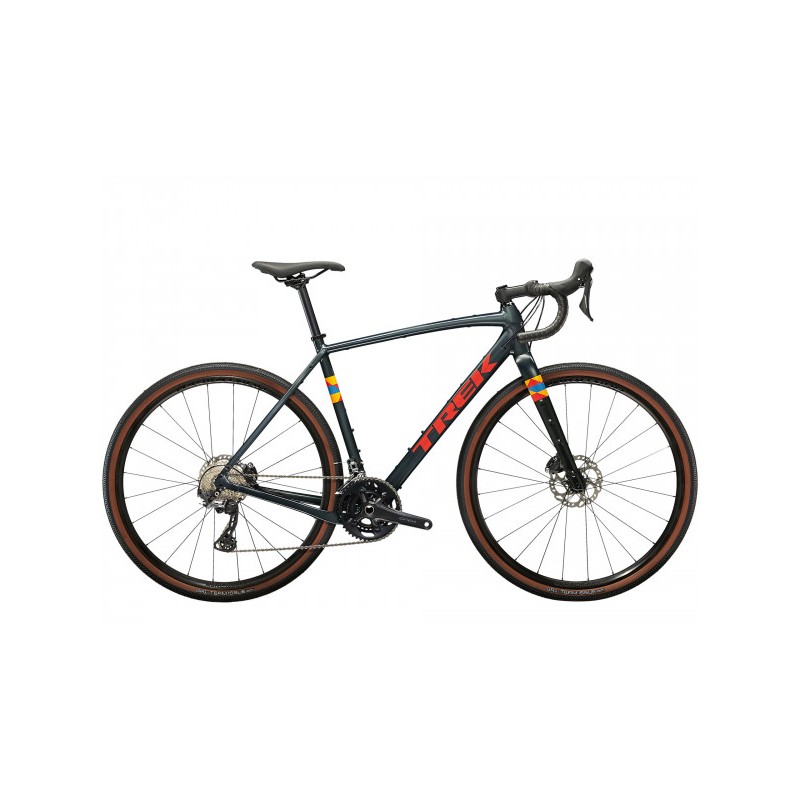

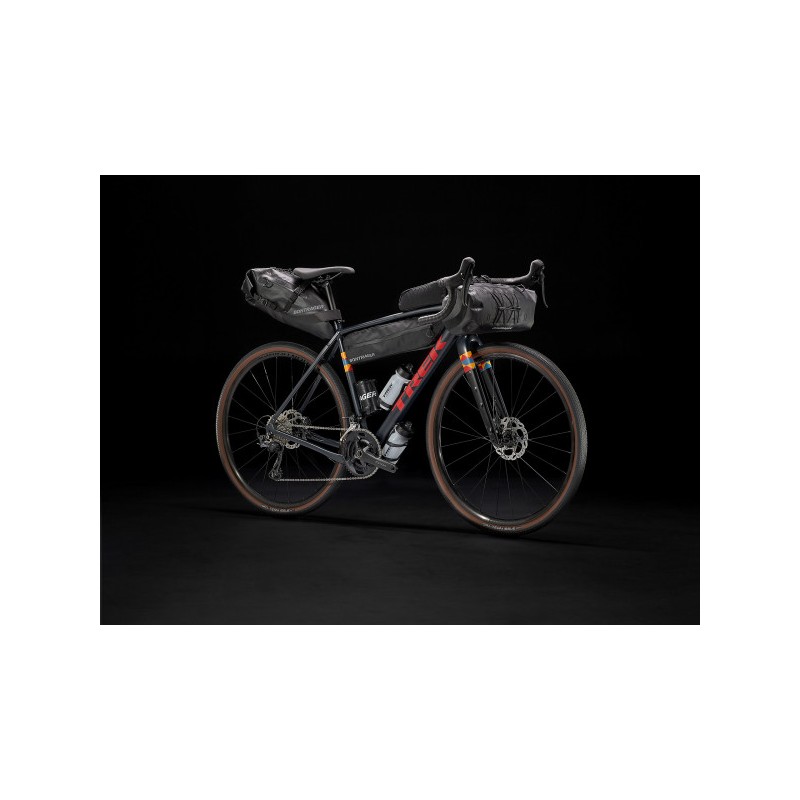

KOLO TREK 23 CHECKPOINT ALR 5 54 BL/RD
